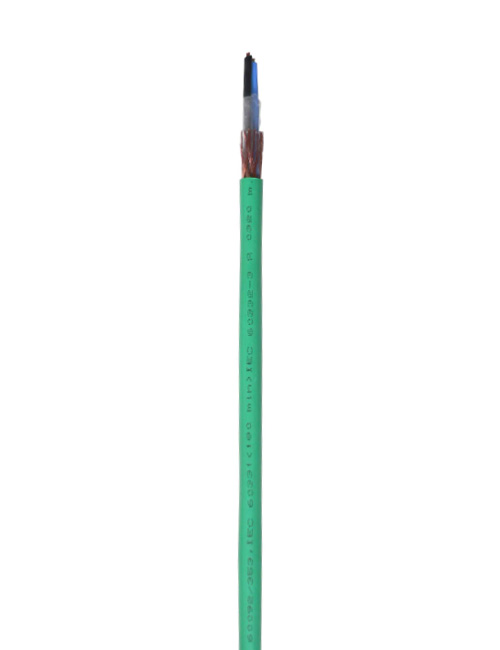

M2XCH- FFR

Halogen Free Fire Resistant

Ship & Offshore Power Cables

Product Info

Product Description

Cable Structure

Conductor

Stranded annealed copper wire
IEC 60228 class 2

Insulation

MICA TAPE + XLPE compound

Bedding

Separating foil or HF compound

Screen

Electrolytic plain copper braided screen

Outer Sheath

Halogen-free, flame retardant thermoplastic polyolefin-based compound (HM41SHF1)- HD 604- IEC
332 / 3 green

Application

These cables are mainly used in permanent installations in ships. As a result of the materials used In the production, they are resistant to all the conditions in the marine environment such as dry, wet and oily. Since they are screened by copper wire braided they prevent Interference by radio and electronic equipment. Halogen-free cables with the enhanced characteristic in case of fire are used for application where harm to human life and damage to property must be prevented in the event of a fire.

Production and Test Standards
Construction IEC 600921353
Test and Material IEC 60092 /
350-351-359
Fire and Flame Retardant IEC 60331
IEC 60332/1
IEC 60332 /3A
Halogen, Gas Content IEC 60754 I 1 – 2
Measur. Of Smoke Densily IEC 61034 I 1-2 (DIN EN 50268!1-2)
Perm, Working Temp + 85°C
Min.bending Radius 8*cable dia. (mm)
Rated Voltage 0.6/1 kV
Test Voltage 3,5 kV
