Standard Reference
EN 50525-2-11 – CEI 20-107/2-11 Construction & Specifications
2014/35/UE Low Voltage Directive
2011/65/CE RoHS Directive
A0221 IMQ Certificate

Product Info

Product Description

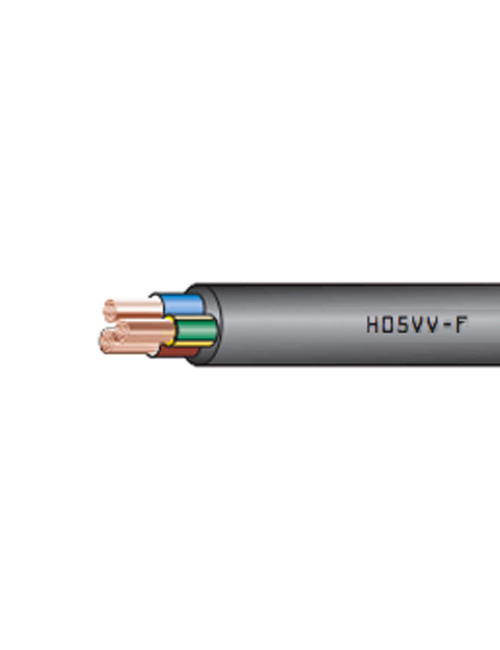

PVC insulated flexible power multi-core cable with medium thickness PVC sheath, circular (H05VV-F) or flat (H05VVH2-F) shape.

Plain copper flexible wire, class 5

PVC compound, TI2 quality

Outer Sheath
PVC compound, TM2 quality

Cores Colour
HD 308 Standard

Sheath Colour
Usually black or white

Technical Characteristics

Nominal voltage Uo/U: 300/500 V

Maximum operating temperature: 60°C
Minimum installation temperature: 5°C

Maximum short circuit temperature: 150°C
Maximum tensile stress: 15 N/mm2
Minimum bending radius: 6 x maximum external diameter

Use and Installation

For domestic uses, in kitchens and offices, where the appliances are subjected to medium mechanical stress. Suitable to be used for domestic appliances in wet conditions (washing machines hair dryers, refrigerators, etc.). They can be used for domestic heating appliances provided they do not come into contact with heating or radiation sources. (ref. CEI 20-40, HD 516)
