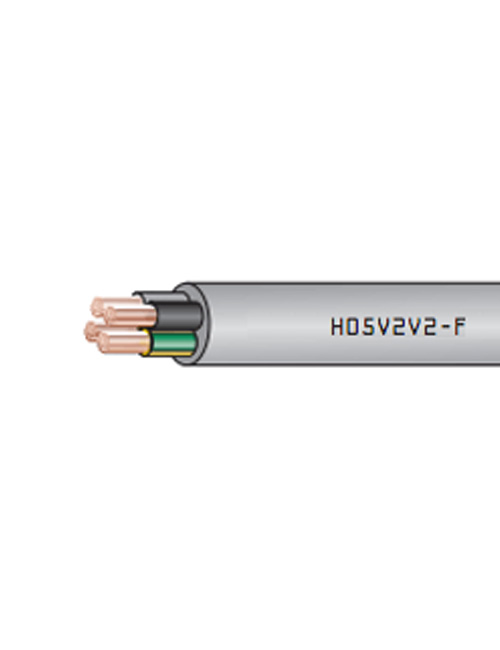

H05V2V2-F

Standard Reference
EN 50525-2-11 – CEI 20-107/2-11 Construction & Specifications
2014/35/UE Low Voltage Directive
2011/65/CE RoHS Directive
CA01.00473 IMQ Certificate (valid only for H05V2V2-F)

Product Info

Product Description

Description

PVC insulated flexible power multi-core cable with medium thickness PVC sheath, for a maximum conductor temperature of 90°C, circular (H05V2V2-F) or flat (05V2V2H2-F) shape.

Conductor
Plain copper flexible wire, class 5

Insulation
PVC compound, TI3 quality, resistant at 90°C

Outer Sheath
PVC compound, TM3 quality, resistant at 90°C

Cores Colour
HD 308 Standard

Sheath Colour
Black, white and grey

Technical Characteristics

Nominal voltage Uo/U: 300/500 V

Maximum operating temperature: 90°C
Minimum installation temperature: 5°C

Maximum short circuit temperature: 150°C
Maximum tensile stress: 15 N/mm2
Minimum bending radius: 6 x maximum external diameter

Use and Installation

For mobile laying. Installation in high-temperature environments in domestic premises, kitchens, offices, suitable for alimentation of portable devices when subjected to medium mechanical stress or for equipment internal wiring. Suitable for kitchen appliances, heating and lighting devices, provided they are not in contact with hot parts and are not subjected to heating radiations. Avoid contact with skin when operating at high temperatures. Unsuitable outside. (ref. CEI 20-40, HD 516)
