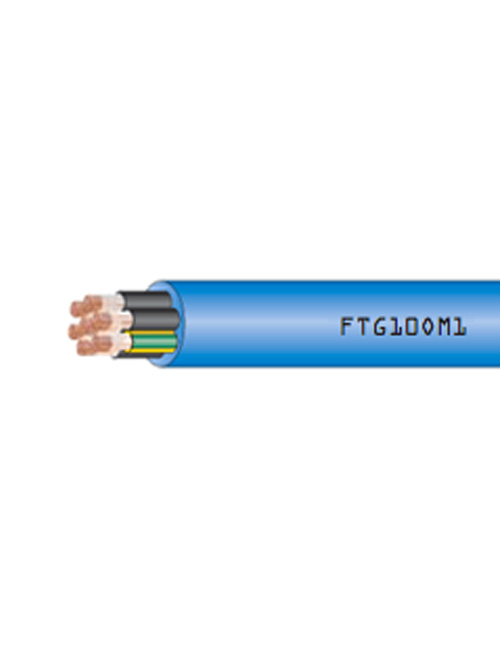

FTG10OM1 0,6/1 kV Signalling

Standard Reference
CEI 20-45 Construction & Specifications
CEI EN 60332-3-24 Fire propagation
CEI EN 50267-2-1 Gas emission
CEI EN 61034-2 Smoke emission
CEI 20-37/4-0 Toxicity index
CEI EN 50362 – CEI EN 50200 Fire resistance
2014/35/UE Low Voltage Directive
2011/65/CE RoHS Directive
CA01.00524 IMQ Certificate

Product Info

Product Description


Flexible signalling and control cable, fire resistant, G10 rubber compound insulated, with special thermoplastic outer sheath, M1 quality, halogen-free, not propagating fire with low smoke emission.

Plain copper flexible wire, class 5

Glass/mica tape

Rubber compound, G10 quality

Non-hygroscopic compound

Outer Sheath
LS0H compound, M1 quality
LS0H = Low Smoke Zero Halogen

Cores Colour
Black numbered, with or without yellow/green protection conductor

Sheath Colour

Technical Characteristics

Nominal voltage Uo/U: 0,6/1 kV

Maximum operating temperature: 90°C
Minimum operating temperature: -15°C
(without mechanical stress)

Minimum installation temperature: 0°C
Maximum short circuit temperature: 250°C

Maximum tensile stress: 50 N/mm2
Minimum bending radius: 14 x maximum external diameter

Use and Installation

Signalling and control cable suitable to be used when maximum security against fire is required, as for emergency lighting and alarm systems, automatic fire detection, automatic opening doors, ventilation and air conditioning, emergency telephone systems. To be used indoor and outdoor, for fixed laying, even in wet environments. It can be fixed on walls or metal structures, in pipes or similar systems. Suitable also for laying underground even if unprotected. (ref. CEI 20-67)
