| CEI 20-45 | Construction & Specifications |
| CEI EN 60332-3-24 | Fire propagation |
| CEI EN 50267-2-1 | Gas emission |
| CEI EN 61034-2 | Smoke emission |
| CEI 20-37/4-0 | Toxicity index |
| CEI EN 50362 – CEI EN 50200 | Fire resistance |
| 2014/35/UE | Low Voltage Directive |
| 2011/65/CE | RoHS Directive |
| CA01.00523 | IMQ Certificate |

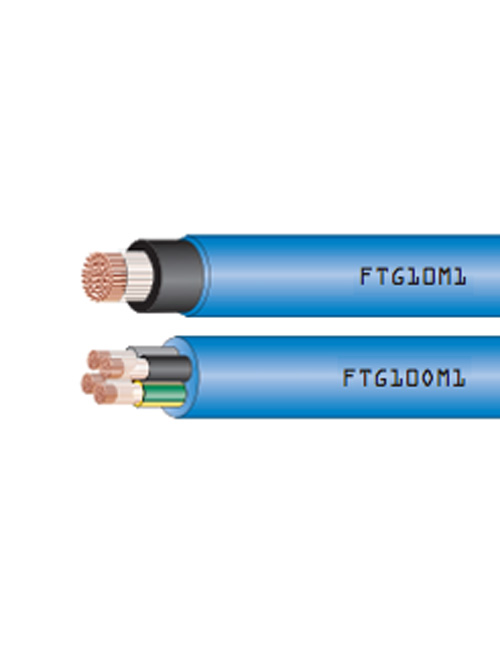

Flexible power cable, fire resistant, G10 rubber compound insulated, with special thermoplastic outer sheath, M1 quality, halogen free, not propagating fire with low smoke emission.
Conductor
Plain copper flexible wire, class 5
Tape
Glass/mica tape
Insulation
Rubber compound, G10 quality
Filler
Non-hygroscopic compound
Outer Sheath
LS0H compound, M1 quality
LS0H = Low Smoke Zero Halogen
Cores Colour
HD 308 Standard
Sheath Colour
Blue
Nominal voltage Uo/U: 0,6/1 kV
Maximum operating temperature: 90°C
Minimum operating temperature: -15°C
(without mechanical stress)
Minimum installation temperature: 0°C
Maximum short circuit temperature: 250°C
Maximum tensile stress: 50 N/mm2
Minimum bending radius: 14 x maximum external diameter
Power cable suitable to be used for electrical systems when maximum security against fire is required, as for emergency lighting and alarm systems, automatic fire detection, fire suppression systems, automatic opening doors, ventilation and air conditioning, emergency telephone systems. To be used indoor and outdoor, for fixed laying, even in wet environments. It can be fixed on walls or metal structures, in pipes or similar systems. Suitable also for laying underground even if unprotected. (ref. CEI 20-67)
