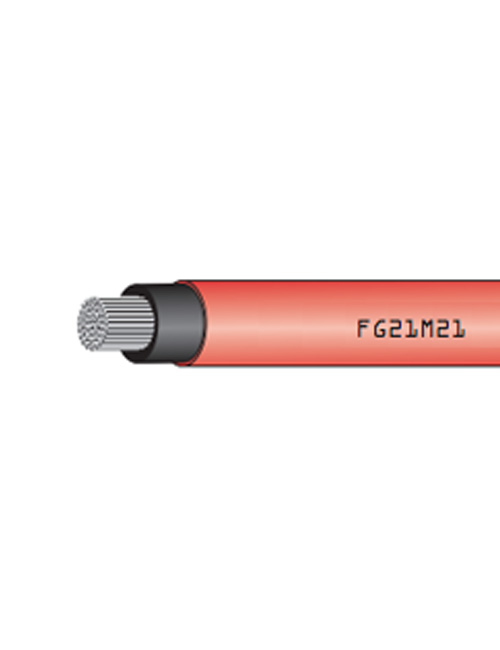

FG21M21 Photovoltaic

Standard Reference
CEI 20-91 Construction & Specifications
CEI EN 60332-1-2 Flame propagation
CEI EN 50267-2-1 Gas emission
CEI EN 61034-2 Smoke emission
2014/35/UE Low Voltage Directive
2011/65/CE RoHS Directive
CA01.00546 IMQ Certificate

Product Info

Product Description

Description

Flexible single-core cable for connection in photovoltaic installations. Insulation and sheath made of elastomeric compound, halogen-free and flame retardant.

Conductor
Tinned copper flexible wire, class 5

Insulation
Special LS0H cross-linked rubber compound, G21 quality
LS0H = Low Smoke Zero Halogen

Outer Sheath
Special LS0H cross-linked rubber compound, M21 quality

Cores Colour
Black

Sheath Colour
Blue, red or black

Technical Characteristics

Maximum voltage Uo/U: 1800 V d.c. – 1200 V a.c.
Maximum operating temperature: 90°C
Minimum operating temperature: -40°C
Minimum installation temperature: -40°C

Maximum short circuit temperature: 250°C
Maximum tensile stress: 15 N/mm2
Minimum bending radius: 4 x maximum external diameter

Use and installation

For interconnection of photovoltaic elements. Suitable for fixed installation indoor and outdoor, in pipes exposed or embedded or in similar closed systems. Suitable for laying directly underground or in pipe underground
